Charging and Discharging Li-Po and Li-Ion Batteries

Charging and Discharging Li-Po and Li-Ion Batteries: A Practical Guide

Lithium Polymer (Li-Po) and Lithium-Ion (Li-Ion) batteries are widely used in RC models, drones, and electronics for their high energy density, lightweight, and impressive discharge capabilities. However, these batteries require careful handling and proper understanding of their specifications, charging methods, and safety procedures to maximize their lifespan and ensure safe usage.

In this guide, we'll explore the essential knowledge needed to handle Li-Po and Li-Ion batteries safely and effectively.

Understanding 1S, 2S, 3S: Battery Series Configuration

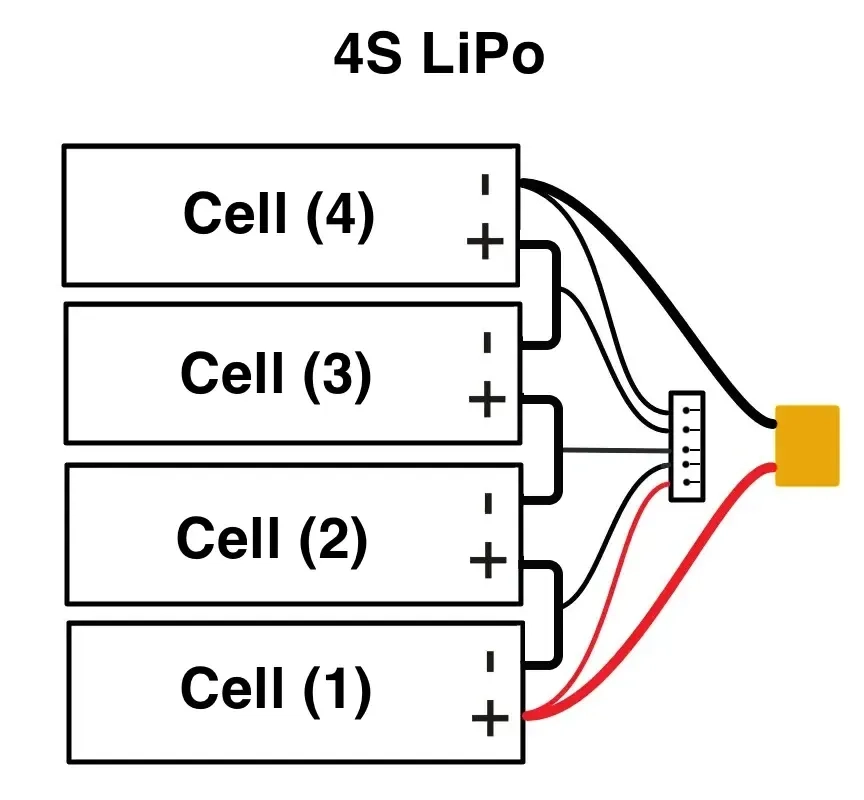

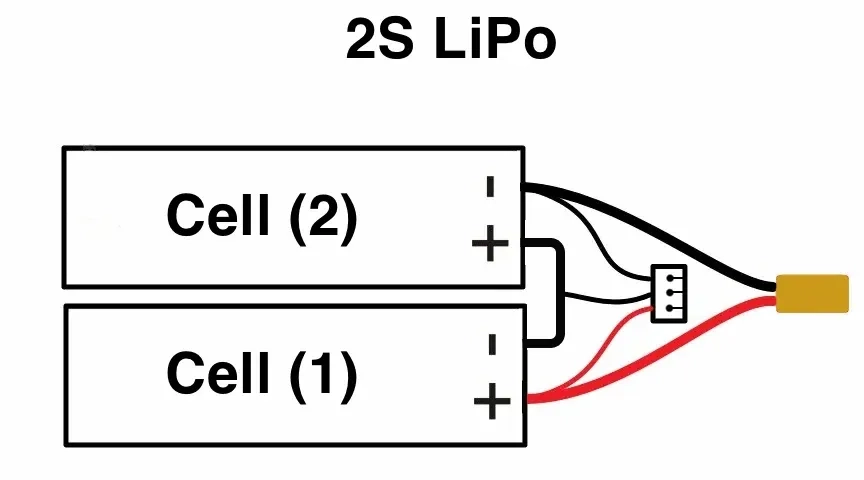

When you see 1S, 2S, 3S, it refers to the number of cells connected in series inside the battery pack:

• 1S = 1 Cell
• 2S = 2 Cells in series
• 3S = 3 Cells in series, and so on.


Each Li-Po or Li-Ion cell has:

• Nominal voltage: 3.7V
• Fully charged voltage: 4.2V

Thus:

• 1S: 3.7V (nominal), 4.2V (full)
• 2S: 7.4V (nominal), 8.4V (full)
• 3S: 11.1V (nominal), 12.6V (full)


Reading and Understanding Battery Labels

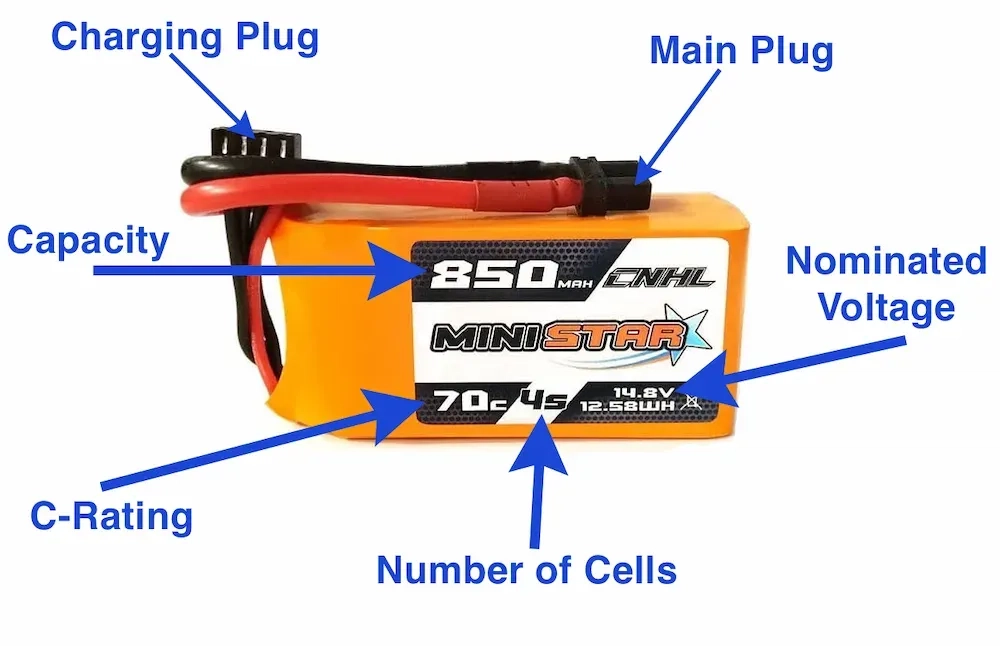

Battery labels typically include:

• Voltage (V): Reflecting the number of series cells.
• Capacity (mAh or Ah): Total energy stored.
• Discharge rate (C rating): Safe maximum discharge current.
• Charge rate (C rating, sometimes specified): Safe maximum charging current.


Example label:

3S 11.1V 2200mAh 25C
Means:

• 3 cells in series (11.1V nominal).
• 2200mAh capacity.
• 25C discharge rate (55A max continuous discharge).


Understanding Battery Capacity

Capacity (mAh or Ah) reflects how much energy the battery can store.

• 2200mAh means the battery can deliver 2200mA for 1 hour, or 1100mA for 2 hours.

Effects on charging and discharging:

• Higher capacity = longer runtime.
• Larger capacity batteries take longer to charge at the same current.
• Higher capacity allows drawing more current safely.

Charging Current: Safe Limits and Calculation

Charging current is commonly specified relative to the battery's capacity using the C rate:

• 1C charge rate = Capacity (Ah).
  Example: 2200mAh battery → 1C = 2.2A charging current.

Always refer to the manufacturer's recommendations:

• Many Li-Po batteries are rated for 1C to 2C charging.
• High-performance batteries may allow higher charge rates (up to 5C).


Rule of thumb:
When in doubt, charge at 1C.

Discharging Current: Understanding and Limits

Discharge current is indicated by the C rating on the battery:

• Discharge current = Capacity x Discharge C rate.
  Example: 2200mAh 25C = 55A continuous discharge.

Exceeding this limit can cause:

• Overheating.
• Voltage sag.
• Permanent damage or fire hazard.


Balanced Charging: Why It’s Essential

For batteries with multiple cells (2S, 3S, etc.), balanced charging ensures all cells are charged evenly:

• Prevents some cells from being overcharged while others are undercharged.
• Extends battery life.
• Reduces the risk of accidents.

Balanced chargers monitor and control the voltage of each cell during the charging process.

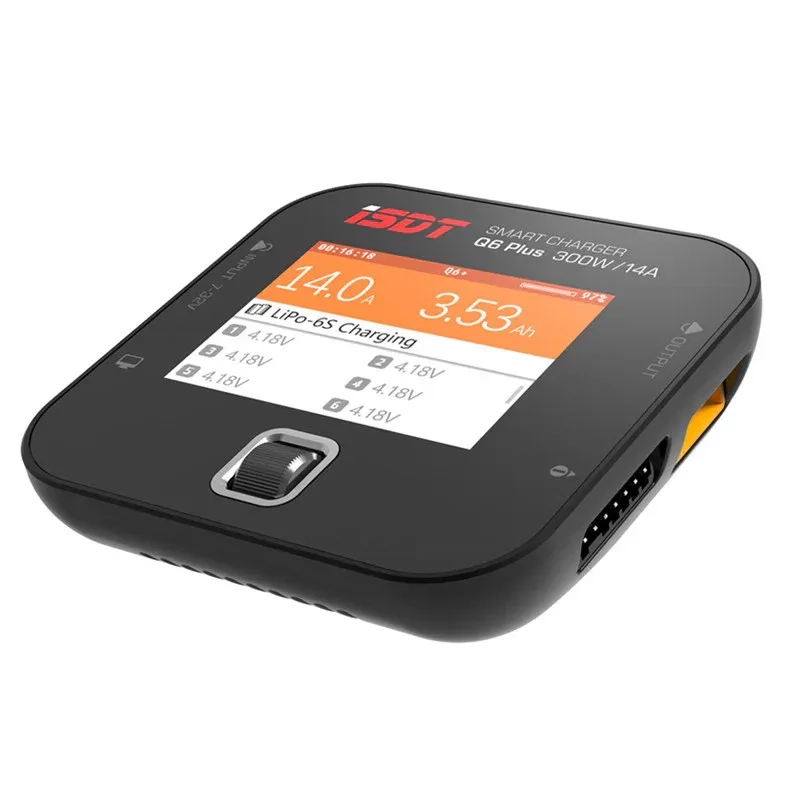

Charger Options for Li-Po and Li-Ion Batteries

1. Basic chargers (no balance):
2. • Suitable only for 1S batteries or packs with external balance circuits (not recommended for multi-cell packs).

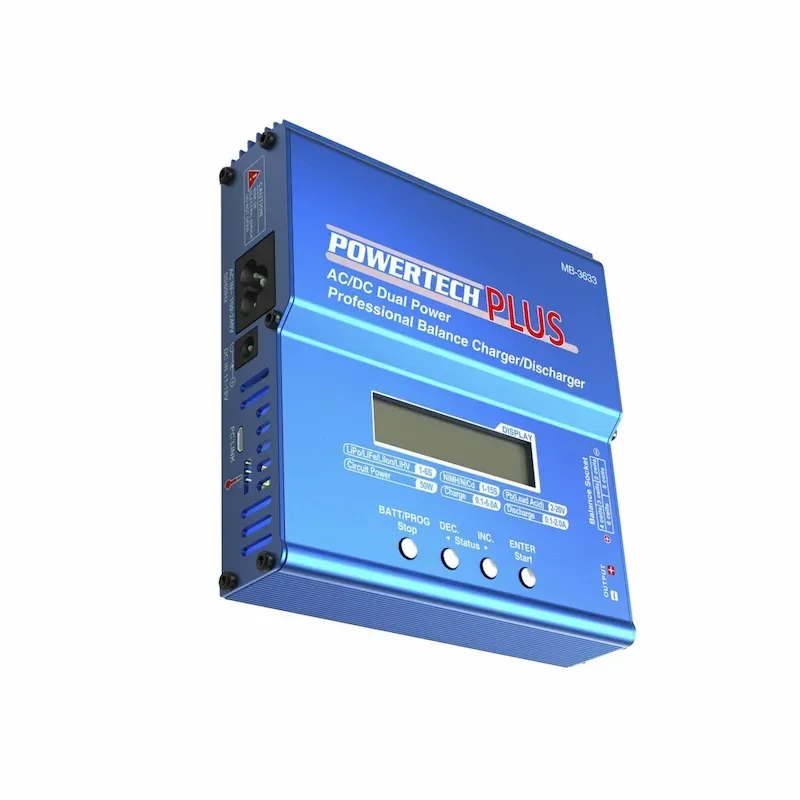

2. Balanced chargers (recommended):
3. • Charge, balance, discharge, and monitor cells.
   • Offer customizable charge rates and display detailed data.
3. USB chargers (for small Li-Ion batteries):
4. • Low-current chargers.
   • Suitable for 1S packs.

Testing a Damaged Battery by Measuring Voltage

Even if a battery shows no physical damage (no swelling), it may still be internally compromised.
A simple voltage test using a digital multimeter can help you assess its condition.

Steps to Test:

1. Set the multimeter to DC voltage (V DC).
2. For multi-cell packs:
   Use the balance connector to measure individual cell voltages.
3. For 1S packs:
   Measure across the main terminals.

Reading the results:

• Healthy cells (resting voltage): Between 3.7V and 4.2V.
• Below 3.0V per cell: Indicates severe over-discharge.
• • Such cells are considered unsafe and may no longer be recoverable.
• Cell imbalance >0.1V between cells: Suggests degradation or imbalance.


Safe Disposal of Damaged or Aged Batteries

Li-Po and Li-Ion batteries, even if they appear intact, must never be thrown into the regular rubbish bin.

Why not throw them in the bin?

• Environmental hazard:
  Lithium-based batteries contain chemicals that are harmful to soil, water, and wildlife if disposed of improperly.
• Fire risk:
  Batteries can ignite or explode if crushed, punctured, or short-circuited during regular waste handling or transportation.
• Legal restrictions:
  Many areas have strict rules against disposing of rechargeable batteries in general trash, requiring them to be handled as hazardous waste.

How to safely dispose:

1. Take to an official battery recycling center (Recommended first option).
2. • Electronics shops, hobby stores, recycling depots, or hazardous waste facilities often accept Li-Po and Li-Ion batteries.
2. Prepare the battery safely for disposal:
3. • Fully discharge the battery using a proper battery discharger in a safe outdoor area.
   • Optionally, submerge the battery in a saltwater solution (1 tablespoon salt per liter of water) for 24+ hours to neutralize any remaining charge.
   • Wrap the terminals with electrical tape to prevent accidental short circuits during handling.

For your safety and environmental protection, always let certified recycling services handle the disposal process.

Conclusion

Li-Po and Li-Ion batteries offer powerful energy storage but require careful handling.
Understanding battery specifications, charging currents, discharge limits, testing procedures, and proper disposal methods will help you get the most from your batteries while minimizing risks.
Always prioritize safety, use the right tools, and dispose of damaged or aged batteries responsibly through official recycling channels.
