Right Thrust Explained: Why RC Airplanes Have a Motor Tilted to the Right

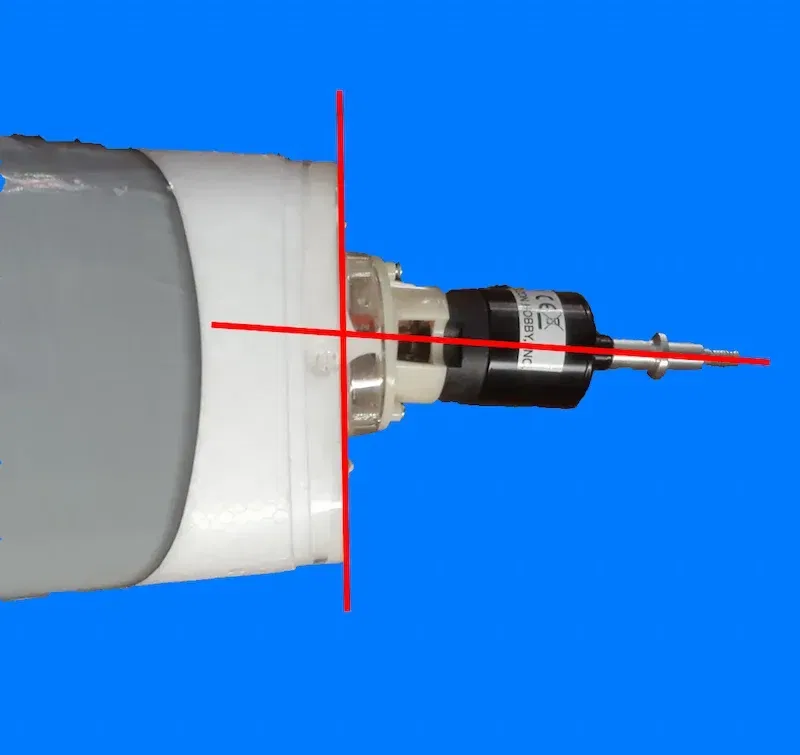

If you've been building or examining RC airplane designs, you might have noticed that the brushless motor is often mounted with a slight angle—tilted to the right. This isn't a mistake or design flaw. It's a crucial aerodynamic adjustment called right thrust, and it plays a big role in stabilizing your plane during powered flight.
This article explains why right thrust is needed, how much is typically used, and offers practical tips for adjusting it during construction and testing. We’ll also explore the factors that affect how much right thrust your specific aircraft may require.
Why Is the Motor Tilted to the Right?
The rightward angle of the motor helps counteract several aerodynamic effects caused by the spinning propeller:

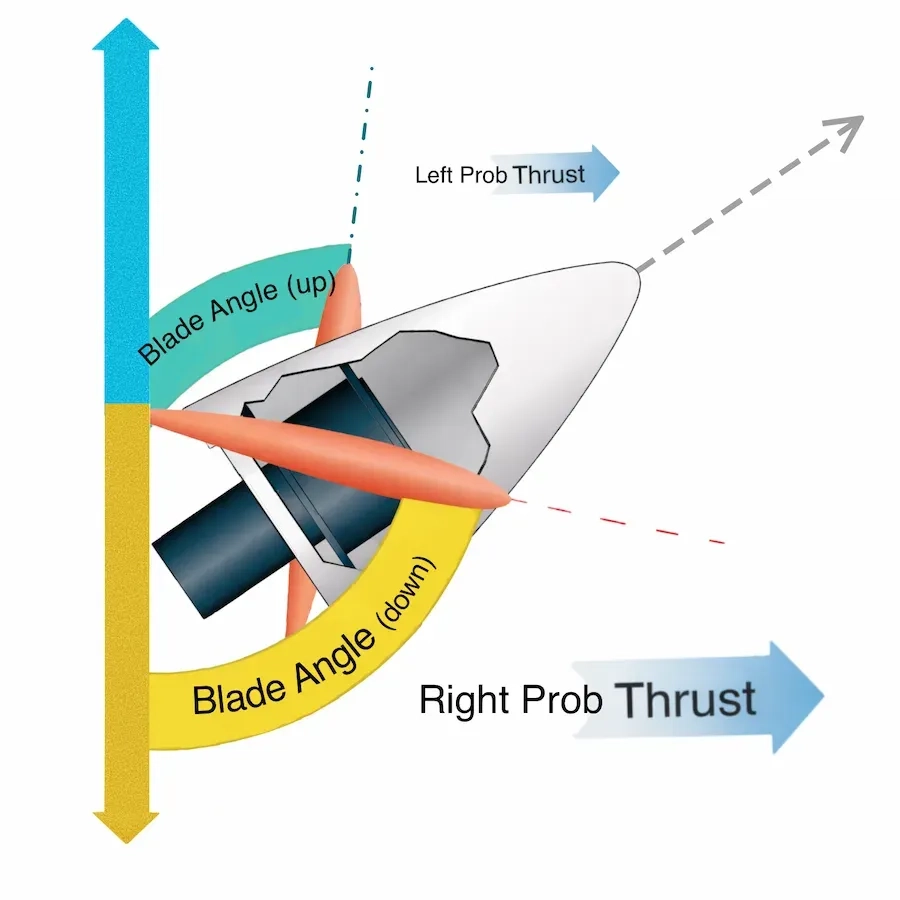

1. P-Factor (Asymmetric Thrust)
When the plane is pitched up—like during takeoff—the descending blade (on the right side) of the propeller produces more thrust than the ascending blade. This imbalance causes the aircraft to yaw to the left. Right thrust compensates for this effect by preemptively yawing the nose slightly to the right.
2. Torque Effect
As the propeller spins clockwise (when viewed from the cockpit), the aircraft experiences a reactive torque in the opposite direction. This results in a tendency to roll or yaw to the left. Adding right thrust helps minimize this effect, especially at full throttle.

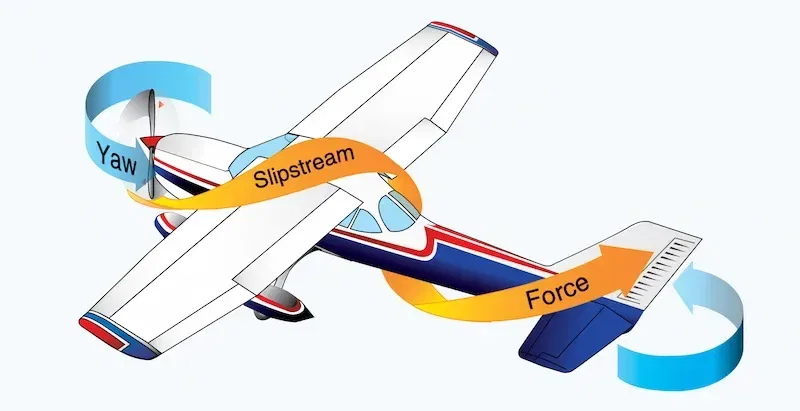

3. Spiraling Slipstream
The propeller creates a spiraling airflow that wraps around the fuselage and strikes the vertical stabilizer—usually on its left side. This pushes the tail to the right and the nose to the left. A slight rightward motor angle offsets this spiraling force to maintain straight flight.
4. Gyroscopic Precession
When the aircraft pitches up or down, the spinning propeller acts like a gyroscope. This can generate additional yawing forces, especially noticeable during sudden changes in pitch. Right thrust helps reduce the impact of gyroscopic precession on yaw behavior.
How Much Right Thrust Is Enough?
Most RC airplane designs incorporate 2 to 3 degrees of right thrust as a standard starting point. Some designs also include down thrust (a slight downward tilt) to counteract excessive nose-up tendencies during high-power flight.
Factors That Affect the Amount of Right Thrust
The ideal right thrust angle is not universal—it depends on several characteristics of the aircraft and flight conditions:
Position of the Vertical Stabilizer
The effectiveness of the spiraling slipstream depends on how much of it strikes the vertical stabilizer. A tail fin positioned directly in the path of the slipstream will be more affected, potentially requiring more right thrust to maintain balance.
Airspeed and Slipstream Strength
At low airspeeds and high throttle (such as during takeoff), the slipstream is stronger and more concentrated, leading to greater side forces. At higher speeds, the airflow straightens out, reducing its influence. As a result, more right thrust may be needed for low-speed, high-power phases of flight.
Aircraft Design Characteristics
Different aircraft designs respond differently to propeller forces:
- Biplanes, with their unique wing and fuselage configuration, may experience different aerodynamic loads than monoplanes.
- High-performance or aerobatic aircraft often require more precise thrust tuning due to their responsiveness and speed.
- Pusher aircraft (with rear-mounted propellers) behave differently and may not need right thrust in the same way.
Practical Tips for Adjusting Right Thrust
Whether you’re building from scratch or assembling a kit, here are some tips for adjusting right thrust effectively.
During Construction
- Check the Plans: Many RC kits or CAD designs specify the recommended motor angle.

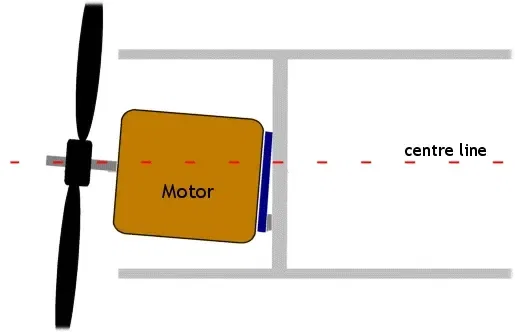

- Use Washers or Spacers: A simple way to tilt the motor is by adding small washers behind the left side of the motor mount.
- Design with the Angle Built In: If you're fabricating your own parts (e.g., 3D printing or laser-cutting), you can build in the thrust angle from the start.
- Use Adjustable Mounts: Some motor mounts allow for small angular adjustments even after installation, which is helpful for fine-tuning.
In-Flight Testing
After the plane is ready to fly, you can use the following tests to evaluate your current right thrust setting:
Full-Throttle Takeoff Test
Take off at full power and observe if the plane veers to the left. If it does, more right thrust may be needed.
Hands-Off Climb Test
Fly straight and level at mid-throttle, then quickly apply full throttle and let go of the controls. If the plane yaws left during the climb, it’s a sign that additional right thrust may help.
Glide Test (Power-Off)
Reduce throttle to zero and let the plane glide. If it turns slightly right without input, you may have too much right thrust.
Making Adjustments
- To increase right thrust, add more washers behind the left side of the motor mount.
- To decrease right thrust, reduce or remove washers, or use a more neutral mount angle.
Avoid Overcompensation
Adding too much right thrust can cause the plane to pull to the right under power, especially during climbs or high-speed flight. Always make small changes and test the results before making further adjustments.
You can also start with a zero thrust angle—mount the motor straight—and observe how the aircraft responds in flight. If the plane reacts sharply when you increase throttle (for example, it pitches down or yaws aggressively to one side), that indicates the need for thrust angle adjustment. From there, begin introducing right or down thrust in small increments and retest.
Final Fine-Tuning
Even with the correct thrust angle, you may still need minor adjustments:
- Use rudder trim on your transmitter to correct small yaw tendencies.
- Ensure your propeller is balanced to avoid vibrations that can affect yaw.
- Slightly adjusting your aircraft’s center of gravity (CG) may also help with overall stability.
Conclusion
Right thrust is one of those subtle but critical elements of RC airplane design that can dramatically affect flight performance. Understanding the aerodynamic forces at play and knowing how to adjust your motor angle can help you achieve smoother, more predictable behavior in the air.
