Introduction to Understanding Resistance

Resistors are fundamental components in electronics, and understanding them is key whether you're working on a simple LED circuit or a more advanced project. In this guide, we’ll explain what resistors are, what they do, the different types available, and how you can identify them—with a clear, relatable analogy along the way.

What Is a Resistor?

A resistor is an electronic component designed to limit or regulate the flow of electrical current in a circuit. Think of it as a control device that ensures that the current does not exceed safe levels, protecting sensitive parts of your circuit.

Resistors and Water Pipes: A Balanced Analogy

Imagine an electrical circuit as a system of water pipes:

• Voltage is like water pressure—it’s the force that pushes water (or electrons) through the pipes.
• Current is the flow of water—the amount that moves through the pipes.
• Resistance is like the diameter of the pipe. A narrow pipe (high resistance) restricts the water flow, while a wide pipe (low resistance) allows a larger flow.

Just as a narrow section in a water pipe controls the flow to prevent flooding, a resistor controls the electrical current to protect your circuit. This analogy helps illustrate the essential role resistors play in managing both current flow and voltage.

The Importance of Ohm’s Law

Ohm’s Law is a fundamental principle that relates voltage (V), current (I), and resistance (R):

V=I×R

This relationship is at the heart of why resistors are so useful—they allow you to control how much current flows through your circuit by adjusting the resistance.

What Are Resistors Used For?

Resistors serve several important functions in electronic circuits:

1. Current Limiting:
   In circuits like those using LEDs, resistors prevent excess current from damaging sensitive components.
2. Voltage Division:
   By using resistors in series, you can create a voltage divider that produces a lower voltage from a higher voltage source. This is useful in many applications where different components require different voltage levels.
3. Biasing Active Devices:
   Resistors help set the proper operating point (or bias) for transistors and other active components, ensuring they function correctly.
4. Signal Conditioning:
   In various applications, resistors help to filter and stabilize signals, which is essential for accurate sensor readings and audio processing.

Different Types of Resistors

Resistors come in a variety of forms, each suited to specific tasks:

Fixed Resistors

• Carbon Film Resistors:
  These are common, cost-effective components used in many basic circuits.
• Metal Film Resistors:
  They offer better precision and stability, making them a good choice for circuits that require higher accuracy.
• Wirewound Resistors:
  Designed to handle higher power levels, these resistors are typically used in power circuits and other heavy-duty applications.
• Surface Mounted Resistors (SMD):
  These resistors are designed for mounting directly on the surface of printed circuit boards (PCBs). They are typically much smaller than their through-hole counterparts, allowing for more compact and automated circuit designs. SMD resistors come in various sizes and are available in both carbon and metal film types, making them a popular choice in modern electronics manufacturing.

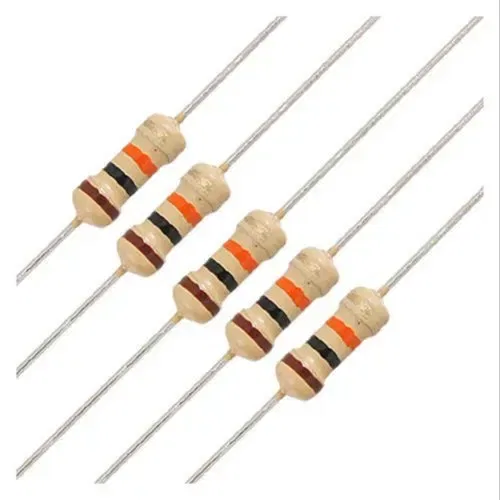

Carbon Film Resistors

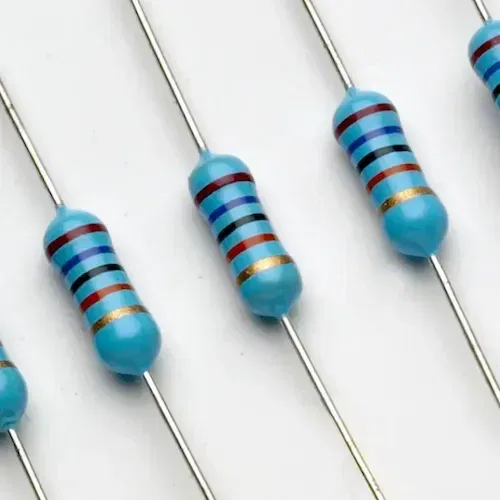

Metal Film Resistors

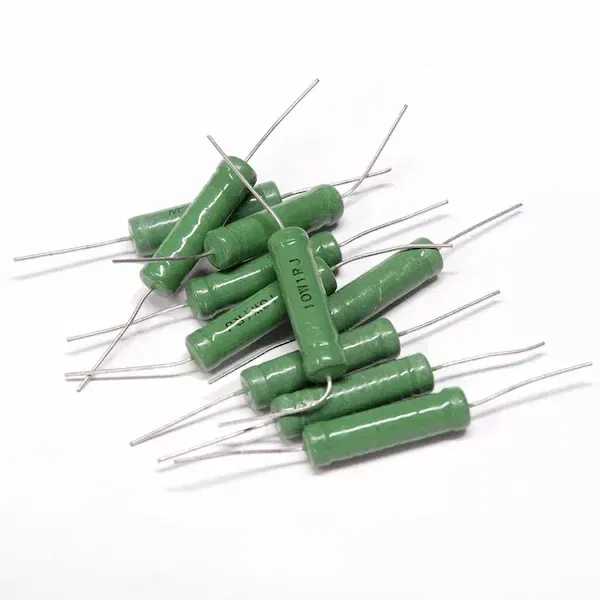

Wirewound Resistors

Surface Mounted Resistors (SMD)

Variable Resistors

• Potentiometers:
  These allow you to adjust the resistance dynamically (for example, to control volume or brightness) with a simple knob or slider.
• Rheostats:
  Similar to potentiometers but generally used to control current in circuits rather than adjust voltage.

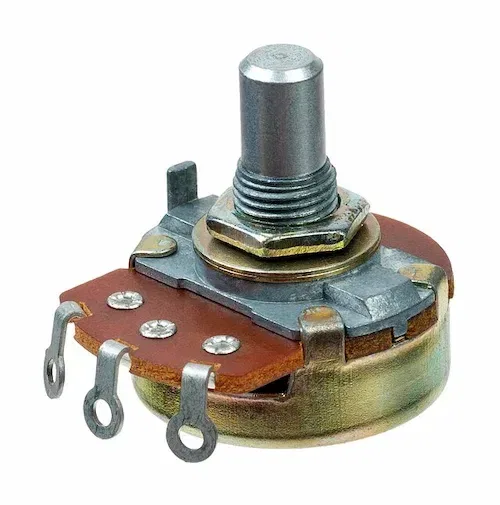

Potentiometer

Rheostats

Specialty Resistors

• Thermistors:
  Resistors whose resistance varies with temperature, making them useful in temperature sensing and compensation applications.
• Photoresistors (LDRs):
  These change their resistance based on the amount of light they receive, often used in light-sensitive circuits.

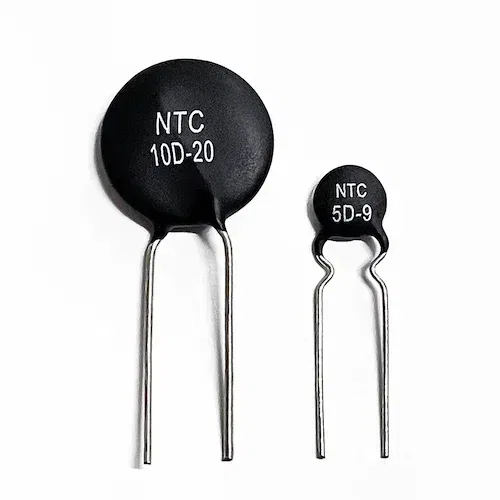

Thermistors

Photoresistors (LDR)

How to Identify a Resistor

Resistors are typically marked with either color-coded bands or printed numerical values, which indicate their resistance and tolerance. On printed circuit boards (PCBs), resistors may also be labeled with their values alongside a schematic symbol, such as

to help with identification.

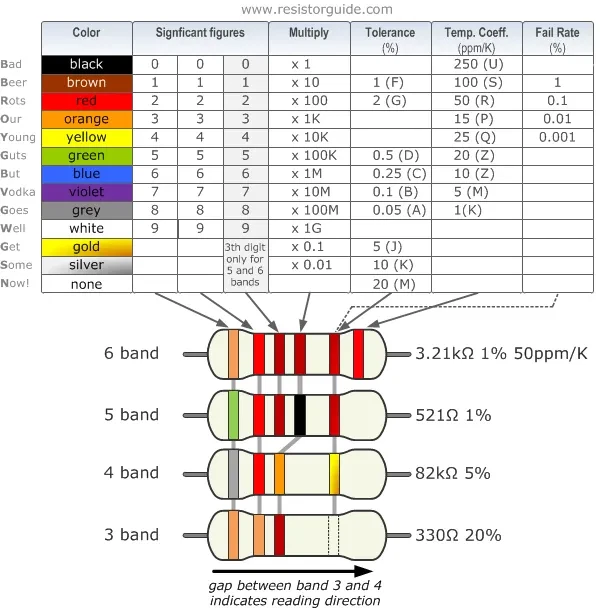

Understanding the Resistor Color Code

Most small fixed resistors use a series of colored bands to communicate their specifications. Here's a simplified reference:

How to Read the Bands:

• First Two or Three Bands: These indicate the significant digits of the resistor's value.
• Next Band: This tells you the multiplier, effectively showing how many zeros to add.
• Tolerance Band: (if present) Indicates the accuracy of the resistor’s stated value.

Example:
A resistor with the color bands Red, Violet, Yellow, Gold would be interpreted as follows:

• Red (2) and Violet (7): Together form the number 27.
• Yellow: Multiplies this value by (10,000).
• Gold: Indicates a tolerance of ±5%.

Thus, the resistor’s value is 27×10,000=270,000 ohms (or 270 kΩ), with a tolerance of ±5%.

Printed Markings

For larger or precision resistors, the resistance value may be printed directly on the component instead of using color bands. This method provides the same information but in a more straightforward manner.

Conclusion

Resistors are small yet essential components that play a crucial role in ensuring your circuits operate safely and effectively. They help control current, divide voltages, and protect sensitive components—much like how a strategically placed narrowing in a water pipe controls water flow. By understanding their function, types, and how to read their markings, you lay a strong foundation for building reliable electronic circuits.

Whether you're a beginner or looking to refresh your electronics knowledge, mastering the basics of resistors is a key step toward more advanced projects. Happy building!
