Exploring the Mini DC Breadboard Power Supply Module: A Must-Have for Electronics Enthusiasts

In the world of electronics prototyping, having a reliable and convenient power source is crucial. One of the most affordable and practical solutions available today is the Mini DC Breadboard Power Supply Module. This small yet powerful module is widely available on online marketplaces like Amazon and AliExpress, making it an excellent choice for beginners and hobbyists alike. In this article, we will explore its features, specifications, and applications.

What is the Mini DC Breadboard Power Supply Module?

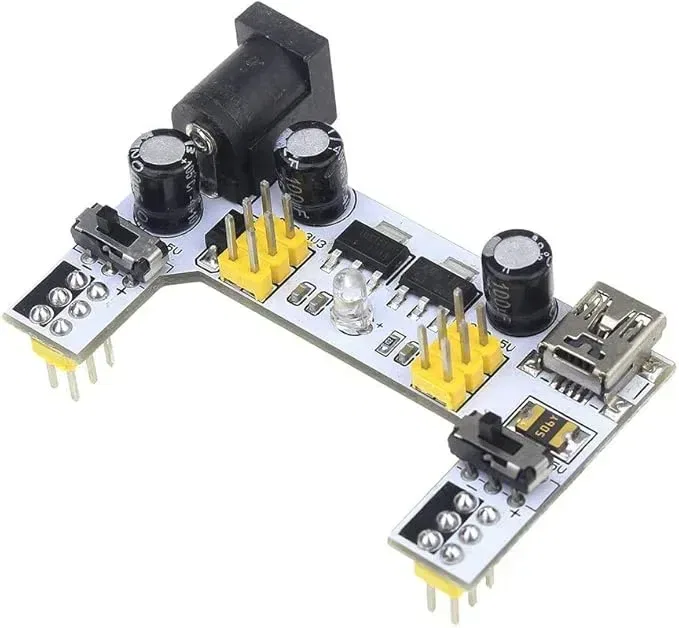

The Mini DC Breadboard Power Supply Module is a compact power management device designed to fit directly onto a standard 400 or 830-hole breadboard. It provides stable voltage outputs, allowing users to power various components in their circuits without the hassle of external power adapters and voltage regulators.

Key Features

Dual Output Voltage: Typically, it provides 3.3V and 5V regulated outputs, suitable for most microcontrollers and sensors.
USB and DC Jack Power Input: Can be powered via a USB cable or a DC barrel jack (6.5V - 12V input), offering flexibility.
Breadboard-Friendly Design: Easily plugs into the power rails of a breadboard, eliminating messy wiring.
On/Off Switch: Convenient control over the power without needing to unplug the supply.
Multiple Output Headers: Provides easy access to both 3.3V and 5V power through header pins.
LED Power Indicator: A built-in LED signals when the module is powered on.

Specifications

Input Voltage: 6.5V - 12V (DC Jack) / 5V (USB)
Output Voltage: 3.3V, 5V
Maximum Current: ~700mA per output (varies by model)
Interface: USB, DC Jack, Header Pins
Compatibility: 400 & 830-hole Breadboards
Switch: On/Off Toggle

Do Not Use for DC Motors

While this module is excellent for powering micro-controllers, sensors, and other low-power components, it is not suitable for powering DC motors. The module's maximum current output is limited, and DC motors often require significantly higher currents, which can damage the module or cause unstable operation. For motorized projects, consider using a dedicated motor driver circuit with an appropriate power source.

Why is this Module Useful?

Affordable Power Solution – Compared to bulky bench power supplies, this module is extremely cheap, often costing just a few dollars.
Versatility – Ideal for microcontrollers like Arduino, ESP8266, ESP32, and Raspberry Pi Pico, as well as sensors and small motors.
Portable & Battery-Friendly – Can be powered by a battery pack, making it perfect for field projects and mobile applications.
Safe and Stable – With regulated outputs and a power switch, it minimizes risks of damaging sensitive components.

How to Use the Module

Powering the Module: Connect a 9V battery, a USB power source, or a DC adapter (6.5V-12V) to the input port.
Placing on a Breadboard: Align the pins with the power rails of a standard breadboard and gently press it in.
Selecting Voltage: Use the onboard jumpers to select between 3.3V and 5V for different rails.
Turning On the Power: Flip the ON/OFF switch, and the LED indicator should light up.
Connecting Components: Use the breadboard’s power rails to supply voltage to micro-controllers, sensors, and other circuit elements.

Conclusion

The Mini DC Breadboard Power Supply Module is a must-have tool for anyone involved in electronics prototyping. Its affordability, ease of use, and flexibility make it a fantastic addition to any electronics toolkit. Whether you are a beginner learning circuit design or an advanced hobbyist experimenting with micro-controllers, this module will undoubtedly simplify your prototyping experience.
